3D Waypoint RViz2 Plugin

An interactive RViz2 tool plugin for creating, manipulating, and managing 3D waypoints directly in the RViz2 viewport. Waypoint state is managed by a shared WaypointManager singleton so that both this tool (3D interaction) and the Tasks Panel's Navigate tab (UI controls) operate on the same data.

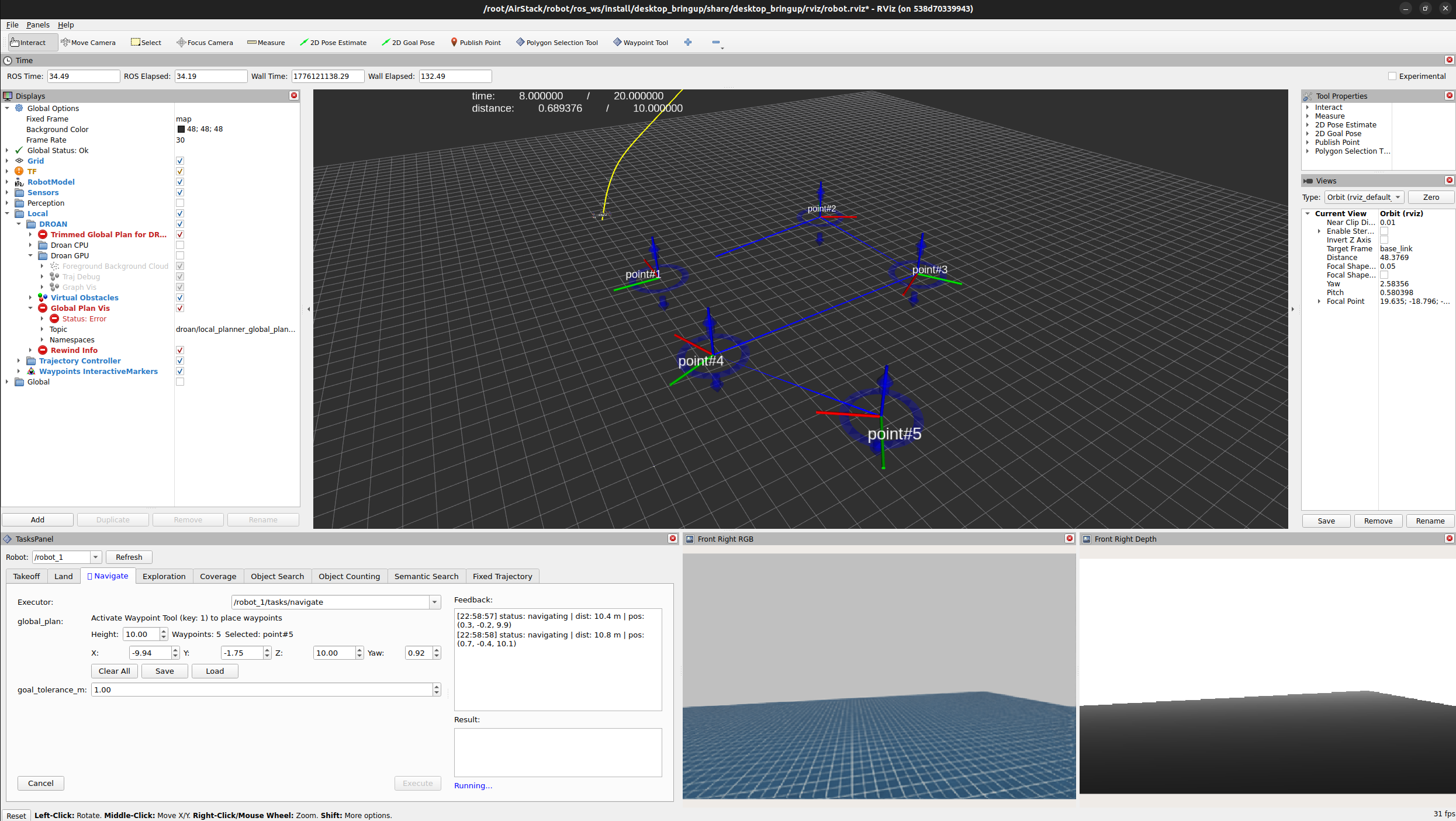

Waypoint Tool Demo

Architecture

 WaypointTool (rviz_common::Tool)        Tasks Panel Navigate tab
   mouse click in 3D viewport              UI: height, X/Y/Z/Yaw,
         |                                 Clear, Save, Load, Execute
         v                                        |
     +------------------------------------------+
     |          WaypointManager (singleton)      |
     |                                          |
     |  - InteractiveMarkerServer               |
     |  - Ogre SceneNode map (waypoint visuals) |
     |  - add / remove / clear / reorder        |
     |  - save / load (.db3 bag files)          |
     |  - getPath() -> nav_msgs/Path            |
     |  - Qt signals for UI updates             |
     +------------------------------------------+
  • WaypointTool (rviz_common::Tool) -- handles mouse events in the 3D viewport. Left-click to add, right-click near an existing waypoint to delete. Delegates all state to WaypointManager.
  • WaypointManager (QObject singleton) -- owns all waypoint state: the interactive marker server, the Ogre scene nodes, persistence, and publishing. Emits Qt signals (waypointCountChanged, selectedMarkerChanged, waypointsCleared) so external UI can stay in sync.
  • The Tasks Panel (separate rviz_tasks_panel package) holds a shared_ptr to the same WaypointManager instance and provides the full control UI in its Navigate tab.

Features

  • Interactive Waypoint Creation: Click to add waypoints at any position in the 3D environment
  • 3D Manipulation: Drag and move waypoints using interactive markers (MOVE_ROTATE, MOVE_AXIS)
  • Orientation Control: Set and adjust waypoint yaw via interactive markers or Navigate tab spinboxes
  • Visual Feedback: Real-time axis indicator meshes at each waypoint
  • Waypoint Management:
  • Add waypoints with left-click
  • Delete waypoints with right-click or context menu
  • "Set manual" context menu selects the waypoint for editing in the Navigate tab
  • Automatic reordering after deletion (no gaps in numbering)
  • Clear all waypoints at once
  • Data Persistence: Save and load waypoint configurations using ROS 2 bag files (.db3)
  • Publishing: Publish waypoints as nav_msgs/msg/Path messages
  • Configurable: Default height, frame ID, and topic name (persisted in RViz config)

Requirements

  • ROS 2 Jazzy (or Humble and above)
  • RViz2
  • Qt5
  • C++17

Dependencies

  • rclcpp
  • rviz_common
  • rviz_default_plugins
  • rviz_rendering
  • rviz_ogre_vendor
  • geometry_msgs
  • visualization_msgs
  • interactive_markers
  • nav_msgs
  • tf2
  • tf2_geometry_msgs
  • rosbag2_cpp
  • pluginlib

Building

colcon build --packages-select waypoint_rviz2_plugin

Usage

Adding the Tool to RViz2

  1. Open RViz2
  2. In the toolbar, click the "+" icon to add a new tool
  3. Select waypoint_rviz2_plugin / WaypointTool from the list
  4. The tool appears in the toolbar with keyboard shortcut 1

Placing Waypoints

  1. Select the Tool: Click the Waypoint Tool icon or press 1
  2. Add Waypoints: Left-click anywhere in the 3D view
  3. Move Waypoints: Add the interactive marker display (Add > By topic > /waypoint_plugin/update/InteractiveMarkers), then drag markers to reposition
  4. Delete Waypoints: Right-click near a waypoint, or use the context menu "delete"
  5. Select for Editing: Right-click a marker and choose "set manual" to select it in the Navigate tab

All waypoint management UI lives in the Tasks Panel's Navigate tab:

  • Default Height -- Z-height for newly placed waypoints
  • X / Y / Z / Yaw spinboxes -- edit the currently selected waypoint's pose
  • Clear All -- remove all waypoints
  • Save / Load -- persist waypoints to/from .db3 bag files
  • Waypoint count and selected waypoint labels update in real time

Listening to Published Waypoints

ros2 topic echo /waypoints

File Structure

waypoint_rviz2_plugin/
├── CMakeLists.txt
├── package.xml
├── plugin_description.xml
├── README.md
├── include/
│   └── waypoint_rviz2_plugin/
│       ├── waypoint_manager.hpp   # Shared singleton (state + operations)
│       └── waypoint_tool.hpp      # RViz Tool (mouse events only)
├── src/
│   ├── waypoint_manager.cpp
│   └── waypoint_tool.cpp
├── media/
│   └── axis.dae                   # 3D axis indicator mesh
└── launch/
    └── rviz2.launch.py

License

Apache 2.0

Credits

Original ROS 1 version by KoKoLates (the21515@gmail.com).

ROS 2 port and WaypointManager refactor for AirStack (Andrew Jong ajong@andrew.cmu.edu).
