System Testing¶

AirStack's system tests bring up the full Docker-based stack — simulator, robot containers, and GCS — and verify end-to-end behavior: container health, ROS 2 node presence, sensor publishing rates (in the sensors mark), and compute resource usage. Tests are written in Python with pytest and live under tests/ at the repo root.

Test Suite Structure¶

Module	Mark	What it tests	Hardware required
`test_build_docker.py`	`build_docker`	Docker image builds (robot-desktop, gcs, isaac-sim, ms-airsim); records image sizes	Docker daemon
`test_build_packages.py`	`build_packages`	`colcon build` inside each container (robot, GCS, ms-airsim ROS workspace)	Docker daemon
`test_liveliness.py`	`liveliness`	Stack bring-up: container Running state, `/clock` readiness, tmux panes, sentinel ROS 2 nodes, compute snapshot, infra-only `test_stable` (tmux + nodes + compute)	Docker daemon, GPU, sim license
`test_sensors.py`	`sensors`	After liveliness in collection order: sim + robot stereo/depth Hz (Isaac: batched `ros2 topic hz` to avoid bridge overload; ms-airsim: single batch), filtered LiDAR via `echo --once` + cloud sanity (isaacsim), sim RTF, `test_sensor_streams_stable`	Docker daemon, GPU, sim license
`test_takeoff_hover_land.py`	`takeoff_hover_land`	End-to-end flight: PX4 readiness gate, takeoff to 10 m, hover stability, land — one chain per (sim, num_robots, iteration, velocity)	Docker daemon, GPU, sim license

Marks can be combined with pytest logic: -m "build_docker or build_packages", -m liveliness, -m sensors, -m takeoff_hover_land, or e.g. -m "liveliness or sensors" (see Bring-up scope below).

Bring-up scope (`airstack_env`)¶

airstack_env is class-scoped and parametrized per (sim, num_robots, iteration). Each test class that uses it (TestLiveliness, TestSensors, TestTakeoffHoverLand, …) performs its own airstack up / airstack down for that parametrization. Selecting both classes (for example, -m "liveliness or sensors") runs two full stack cycles per tuple (liveliness class, then sensors class). Collection order (see conftest.py) runs liveliness before sensors when both are selected. To save wall time, run -m liveliness or -m sensors alone when one suite is enough.

Test Infrastructure¶

All shared fixtures, helpers, and configuration live in tests/conftest.py.

`airstack_env` fixture¶

Parametrized over (sim, num_robots, iteration) tuples derived from CLI flags. For each combination it:

Calls airstack up with the appropriate COMPOSE_PROFILES, NUM_ROBOTS, and headless flags
Records airstack_up_duration_s to metrics.json
Yields an env dict used by liveliness and sensor tests
Tears down with airstack down and records airstack_down_duration_s

Isaac Sim and the `sensors` mark¶

LiDAR in pytest: tests/conftest.py sets ENABLE_LIDAR=true in SIM_CONFIG["isaacsim"]["extra_env"] so the multi-drone Pegasus script (example_multi_px4_pegasus_launch_script.py) attaches RTX LiDAR the same way the single-drone script always does. Without that flag the multi script would not spawn LiDAR OmniGraphs.

Topic checks live in tests/sensor_probes.py and are driven by tests/test_sensors.py:

Path	What we measure	How
Sim → `/clock`, stereo images, stereo depth	Publish rate	`ros2 topic hz` on the sim container: `/clock` alone, then chunks of two `image_rect` topics, then chunks of two depth topics (`ISAACSIM_HZ_CHUNK_SIZE` in `sensor_probes.py`).
Robot → same topic names (bridge)	Publish rate	Same two-at-a-time chunking on the robot container for Isaac. ms-airsim: one batch of four topics.
Robot → filtered `.../ouster/point_cloud`	Stream alive	`ros2 topic echo --once` per robot (not Hz — large `PointCloud2`).
LiDAR geometry	Near-range vs `near_range_m`	`lidar_point_cloud_filter/scripts/validate_lidar_filter_clouds.py` (raw vs filtered).

Sim RTF (real-time factor from /clock) is also in the sensors suite. test_sensor_streams_stable repeats sim + robot stereo + LiDAR probes every --stable-interval for --stable-duration and records time-series to metrics.json (stereo/depth as *.hz_samples; LiDAR echo-once as *.received_samples).

`MetricsRecorder`¶

Writes custom metrics to tests/results/<timestamp>/metrics.json after each record() call. Keys follow the pattern test_node_id → metric_key → {value, unit, direction}. Time-series data (Hz samples, compute snapshots) are stored as {key}_samples lists and expanded into scalar aggregates (mean, min, max, start_mean, end_mean) by parse_metrics.py.

Output files¶

Every test run produces a timestamped directory. Per-test logs — for each pytest function, pytest_runtest_setup in conftest.py attaches the shared logger to logs/test_<module>.<Class>.<test>[<param-id>].log (param ids are rewritten for readability, e.g. msairsim-rob#1-iter0; see pytest_collection_modifyitems).

airstack_env.<…>.log — the class-scoped airstack_env fixture wraps airstack up / airstack down in logger_to("airstack_env." + <current nodeid>) (see conftest.py). So you get an extra file whose name is the word airstack_env. plus the node id of whichever test was running when the fixture first ran for that class. For TestLiveliness that is almost always test_robot_containers_running (first test in the class), not test_stable. That file holds compose / airstack subprocess output; each test still has its own log for assertions and docker exec / ros2 lines.

tests/results/
└── 2025-04-21_14-30-00/
    ├── results.xml        # JUnit XML — test durations and pass/fail status
    ├── metrics.json       # Custom metrics (image sizes, Hz, compute, timing)
    └── logs/
        ├── test_build_docker.TestDockerBuilds.test_build_robot_desktop.log
        ├── airstack_env.test_liveliness.TestLiveliness.test_robot_containers_running[msairsim-rob#1-iter0].log
        ├── test_liveliness.TestLiveliness.test_robot_containers_running[msairsim-rob#1-iter0].log
        ├── test_liveliness.TestLiveliness.test_stable[msairsim-rob#1-iter0].log
        ├── test_sensors.TestSensors.test_sensor_streams_stable[msairsim-rob#1-iter0].log
        └── ...            # More per-test logs; another airstack_env.* per class using the fixture

Running Tests¶

`airstack test` (primary interface)¶

airstack test is the standard way to run tests. It builds the containerized test runner from tests/docker/, mounts the repo read-only, and forwards all arguments directly to pytest. No local Python environment needed.

# From the repo root (AirStack must be set up: airstack setup):

# Build tests only — fast, no GPU needed
airstack test -m "build_docker or build_packages" -v

# Liveliness run — ms-airsim, 1 robot, 1 iteration, 60 s stability window
airstack test -m liveliness \
  --sim msairsim \
  --num-robots 1 \
  --stress-iterations 1 \
  --stable-duration 60 \
  -v

# Takeoff/hover/land run — three velocities
airstack test -m takeoff_hover_land \
  --sim msairsim \
  --num-robots 1 \
  --stress-iterations 1 \
  --takeoff-velocities 0.5,1,2 \
  -v

# Sensor topic rates + LiDAR
airstack test -m sensors \
  --sim isaacsim \
  --num-robots 1 \
  --stress-iterations 1 \
  --stable-duration 60 \
  -v

# Show GUI windows (for local visual inspection)
airstack test -m liveliness --gui -v

airstack test calls xhost + automatically so GUI-mode sim containers can reach the host X server; it is a no-op when DISPLAY is not set.

Prerequisites¶

Docker daemon running with your user in the docker group
NVIDIA drivers + nvidia-container-toolkit for liveliness, sensors, and takeoff_hover_land tests
airstack setup completed (adds airstack to PATH)

Direct pytest (for development / debugging)¶

Run pytest directly when you need faster iteration (no container rebuild) or want to attach a debugger. Requires a local Python environment.

export AIRSTACK_ROOT=$(pwd)
pip install -r tests/requirements.txt

# Build tests only
pytest tests/ -m "build_docker or build_packages" -v

# Liveliness run
pytest tests/ -m liveliness \
  --sim msairsim \
  --num-robots 1 \
  --stress-iterations 1 \
  --stable-duration 60 \
  -v

# Sensor streams (after liveliness in default collection order)
pytest tests/ -m sensors \
  --sim isaacsim \
  --num-robots 1 \
  --stress-iterations 1 \
  -v

CLI option reference¶

Option	Default	Description
`--sim`	`msairsim,isaacsim`	Comma-separated sim targets
`--num-robots`	`1,3`	Comma-separated robot counts
`--stress-iterations`	`3`	Up/down cycles per (sim, num_robots) config
`--stable-duration`	`120`	Seconds `test_stable` / `test_sensor_streams_stable` poll for
`--stable-interval`	`10`	Seconds between polls in those stability tests
`--gui`	off	Show simulator GUI (disables headless mode)
`--takeoff-velocities`	`0.5,1,2`	Takeoff/land speeds in m/s

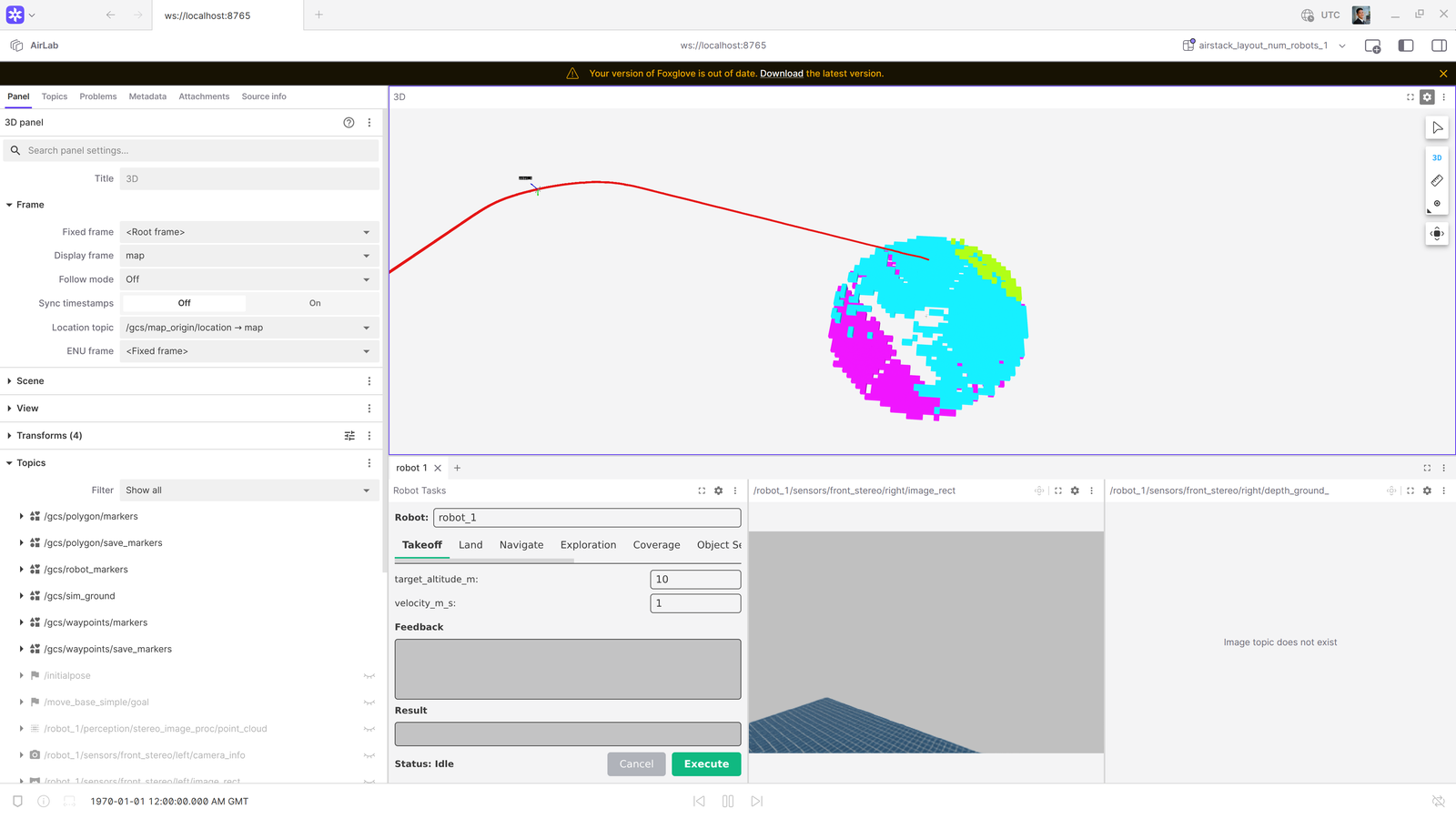

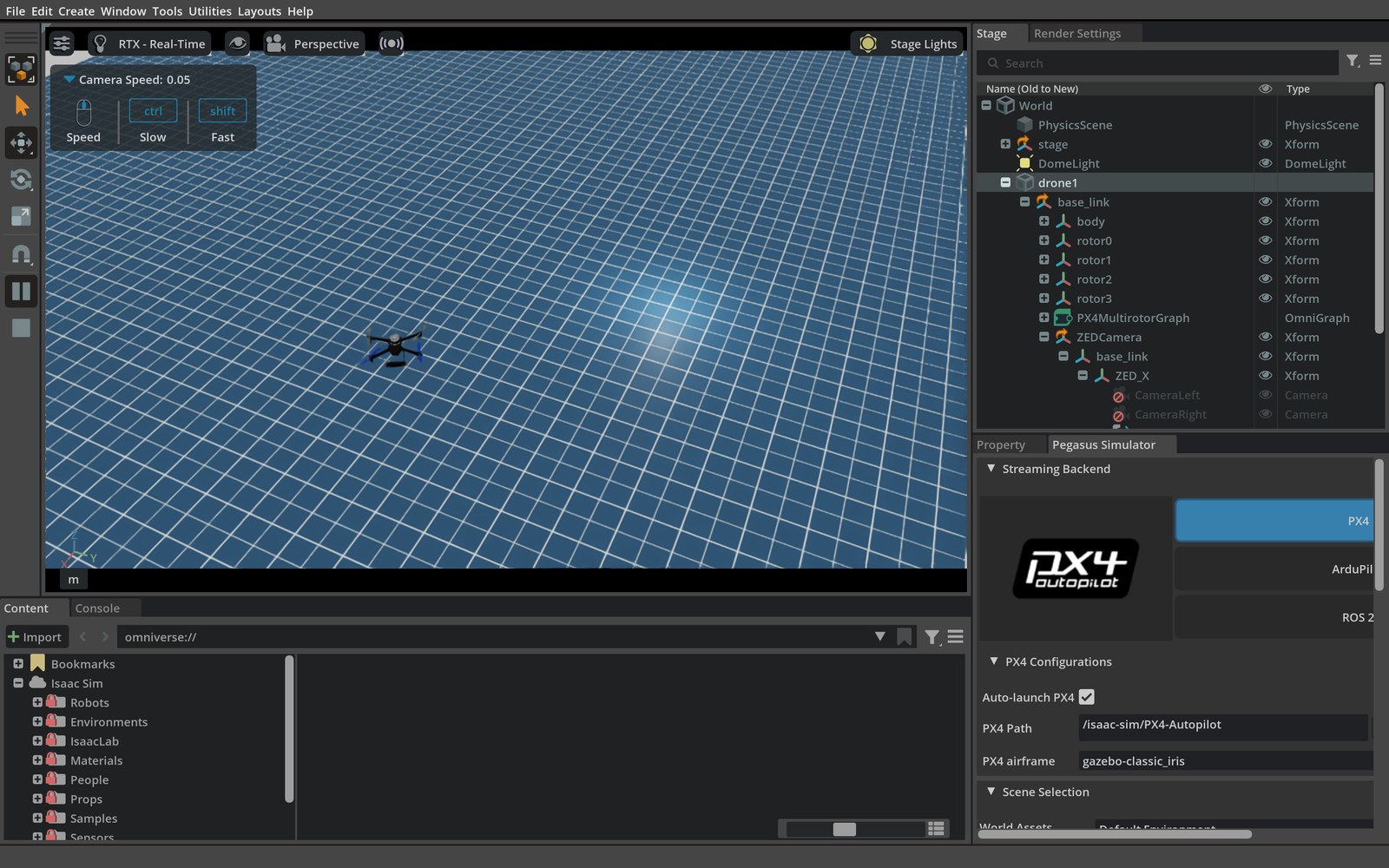

Autonomy Tests (`test_takeoff_hover_land.py`)¶

TestTakeoffHoverLand runs a 4-phase flight chain for every combination of (sim, num_robots, iteration, velocity). The drone returns to the ground after each velocity so the next velocity starts from a clean state.

Phase order¶

Phase	Test	What happens
1	`test_px4_ready`	Waits for MAVROS + PX4 EKF ready; once per env
2	`test_takeoff`	Sends TakeoffTask; asserts altitude within 10 %
3	`test_hover`	Captures odom for 10 s; asserts altitude drift < 0.5 m
4	`test_landing`	Sends LandTask; asserts final altitude < 0.5 m

If any phase other than test_hover fails, the remaining phases for that env are skipped (the chain guard prevents a stuck-in-air drone from blocking later velocity sweeps). A hover failure does not skip landing, so the drone always returns to the ground.

Recorded metrics¶

Metric key	Unit	Description
`ready_duration_sys_s`	s	Wall-clock time from test start until PX4 ready
`takeoff_duration_sim_s`	s	Sim-time from first motion to 95 % of target
`land_duration_sim_s`	s	Sim time from 80 % peak descent to < 0.5 m
`velocity_rmse_m_sim_s`	m/s	RMSE of dz/dt vs commanded velocity during climb/descent
`altitude_error_m`	m	Signed steady-state error at takeoff success (+ = high)
`overshoot_m`	m	Unsigned transient overshoot above target
`hover_altitude_mean_error_m`	m	Mean altitude drift during hover
`hover_position_stddev_m`	m	3-D position jitter (sqrt of summed axis variances)
`final_altitude_m`	m	Altitude at landing action completion
`odometry_error_mean_m`	m	Mean 3-D position error vs ground-truth odom
`odometry_error_max_m`	m	Peak 3-D error vs ground-truth odom
`odometry_altitude_bias_m`	m	Signed z-axis bias vs ground-truth odom

Metrics are recorded per robot as robot_N.<key> and written to tests/results/<timestamp>/metrics.json.

Running takeoff_hover_land tests¶

# Sweep velocities 0.5, 1, 2 m/s; 1 robot; ms-airsim
airstack test -m takeoff_hover_land \
  --sim msairsim \
  --num-robots 1 \
  --stress-iterations 1 \
  --takeoff-velocities 0.5,1,2 \
  -v

# Single velocity, Isaac Sim, 3 robots
airstack test -m takeoff_hover_land \
  --sim isaacsim \
  --num-robots 3 \
  --stress-iterations 1 \
  --takeoff-velocities 1 \
  -v

Metrics Reporting (`parse_metrics.py`)¶

tests/parse_metrics.py reads results.xml and metrics.json from a run directory and produces a markdown report. It has two modes:

Single-run report¶

python tests/parse_metrics.py \
  --current tests/results/2025-04-21_14-30-00/

Prints a markdown table of all recorded metrics. Always exits 0.

Diff / regression check¶

python tests/parse_metrics.py \
  --current  tests/results/2025-04-21_14-30-00/ \
  --baseline tests/results/2025-04-20_09-00-00/ \
  --threshold 20          # optional: regression if change% exceeds this (default 20)
  --output   report.md    # optional: also write to file

Prints a side-by-side comparison. Exits 1 if any metric regresses beyond the threshold; exits 0 otherwise.

The report has three sections per test module:

Metrics — flat table of scalar metrics (test name, metric key, value/baseline, change%)
Sim publishing rates — pivot table of topic Hz aggregates from the sensors mark (mean, start_mean, end_mean, min, max; sim + robot topics)
Compute usage — pivot table of CPU/memory/GPU metrics per container

Regressions are flagged with :red_circle:, improvements with :green_circle:.

CI/CD Integration¶

Workflow: `system-tests.yml`¶

.github/workflows/system-tests.yml runs on:

Pull requests to main or develop — automatically runs build_docker or build_packages tests (no GPU-intensive liveliness run on every PR)
Manual dispatch (workflow_dispatch) — fully configurable for liveliness runs and metric comparisons

Manual dispatch inputs¶

Input	Default	Description
`marks`	`liveliness`	pytest marks expression
`sim`	`msairsim`	Sim targets
`num_robots`	`1`	Robot counts
`stress_iterations`	`1`	Iterations per config
`stable_duration`	`120`	Stability polling seconds
`baseline_run_id`	(blank)	Run ID for comparison; blank = latest `main` run

Jobs¶

run-tests runs on a freshly-spawned ephemeral OpenStack instance ([self-hosted, airstack-ephemeral]). The instance is provisioned per-job by the orchestrator described below and destroyed once the job completes. It installs dependencies, runs pytest, and uploads tests/results/ as an artifact named test-results-<sha>-<run_id> with 90-day retention.

report runs on ubuntu-latest after run-tests (even if it failed). It:

Downloads the current artifact
Downloads a baseline artifact (from the base branch for PRs, from main for manual runs, or from the specified baseline_run_id)
Runs parse_metrics.py in diff mode if a baseline is found, otherwise in single-run mode
Posts the markdown report as a PR comment (PR runs) or to the job summary (all runs)
Fails with ::error:: if parse_metrics.py exits 1 (regression detected)

Required third-party action¶

The workflow uses dawidd6/action-download-artifact@v6 to download artifacts from other workflow runs by branch name. This is a community action and must be trusted in your repository's Actions settings if you use a restricted allowed-actions policy.

CI/CD Orchestrator (OpenStack-backed ephemeral runners)¶

AirStack's tests require a GPU, Docker, and a clean filesystem per run, so they execute on truly ephemeral OpenStack instances spawned per-job by an orchestrator. Each test job gets a fresh VM that is destroyed once the job completes — no Docker layer carryover, no leaked containers, no shared host state.

Architecture¶

┌──────────────────────────────────────────────────────────────┐
│  Orchestrator VM  (airstack-ci-cd-orchestrator)              │
│   • polls GitHub for queued workflow_jobs                    │
│   • mints single-use JIT runner tokens                       │
│   • spawns / reaps ephemeral instances via OpenStack Nova    │
│   • holds the GitHub PAT and OpenStack application credential│
└────────────┬───────────────────────────────────┬─────────────┘
             │                                   │
             ▼                                   ▼
┌──────────────────────────────┐   ┌────────────────────────────────┐
│ Ephemeral worker (per job)   │   │ GitHub Actions queue           │
│ Image: Ubuntu-24.04-GPU-     │   │  workflow_job  status=queued   │
│        Headless              │   │  labels: [self-hosted,         │
│ cloud-init bootstraps Docker │   │           airstack-ephemeral]  │
│ + nvidia-container-toolkit + │   └────────────────────────────────┘
│ GH Actions runner; runs ONE  │
│ job, then is destroyed.      │
└──────────────────────────────┘

Why this instead of a long-lived self-hosted runner¶

Concern	Mitigation
Cross-job state pollution (Docker cache, dangling networks, leftover artifacts)	Each job runs on a fresh VM. Spent VM is destroyed within ~30 s of job completion.
Fork PRs executing arbitrary code	Workflow's `if: github.event.pull_request.head.repo.full_name == github.repository` — fork PRs skipped.
Runner running as root	The runner runs as the unprivileged `ubuntu` user inside an instance whose only purpose is one job.
Docker socket gives root-equivalent access	Bounded to a single one-shot VM. The orchestrator host doesn't expose Docker at all.
Long-lived PAT on the runner host	The PAT lives only on the orchestrator. Workers receive a single-use JIT runner config — a base64 token bound to one runner registration.
Persistent OpenStack creds tied to a user password	Orchestrator authenticates with an application credential (revocable, scoped) instead of `openrc.sh`.

Setup¶

The orchestrator service code, cloud-init template, systemd unit, and full setup runbook live in .github/orchestrator/. See .github/orchestrator/README.md for:

creating the OpenStack application credential and clouds.yaml
staging the GitHub PAT
running setup.sh on the orchestrator VM
filling in flavor / network / keypair / security-group in /etc/airstack-orchestrator/config.yaml
enabling and verifying the airstack-orchestrator.service systemd unit

Runner labels¶

The workflow file requests runs-on: [self-hosted, airstack-ephemeral]. The orchestrator polls for queued jobs whose labels are a superset of runner_labels in its config, mints a JIT config registering the ephemeral runner under those same labels, and spawns the worker. To route jobs to a different pool (e.g. CPU-only workers) in the future, add a second label set in config and adjust the workflow's runs-on.
