DROAN GL Local Planner

Overview

DROAN GL is a GPU-accelerated local planner for obstacle avoidance using stereo disparity. It implements the DROAN (Disparity-space Representation for Obstacle Avoidance and Navigation) algorithm with a key improvement: obstacles are expanded using the true sphere shape rather than the camera-facing bounding box approximation used in the original paper, which can be done efficiently on the GPU via OpenGL shaders.

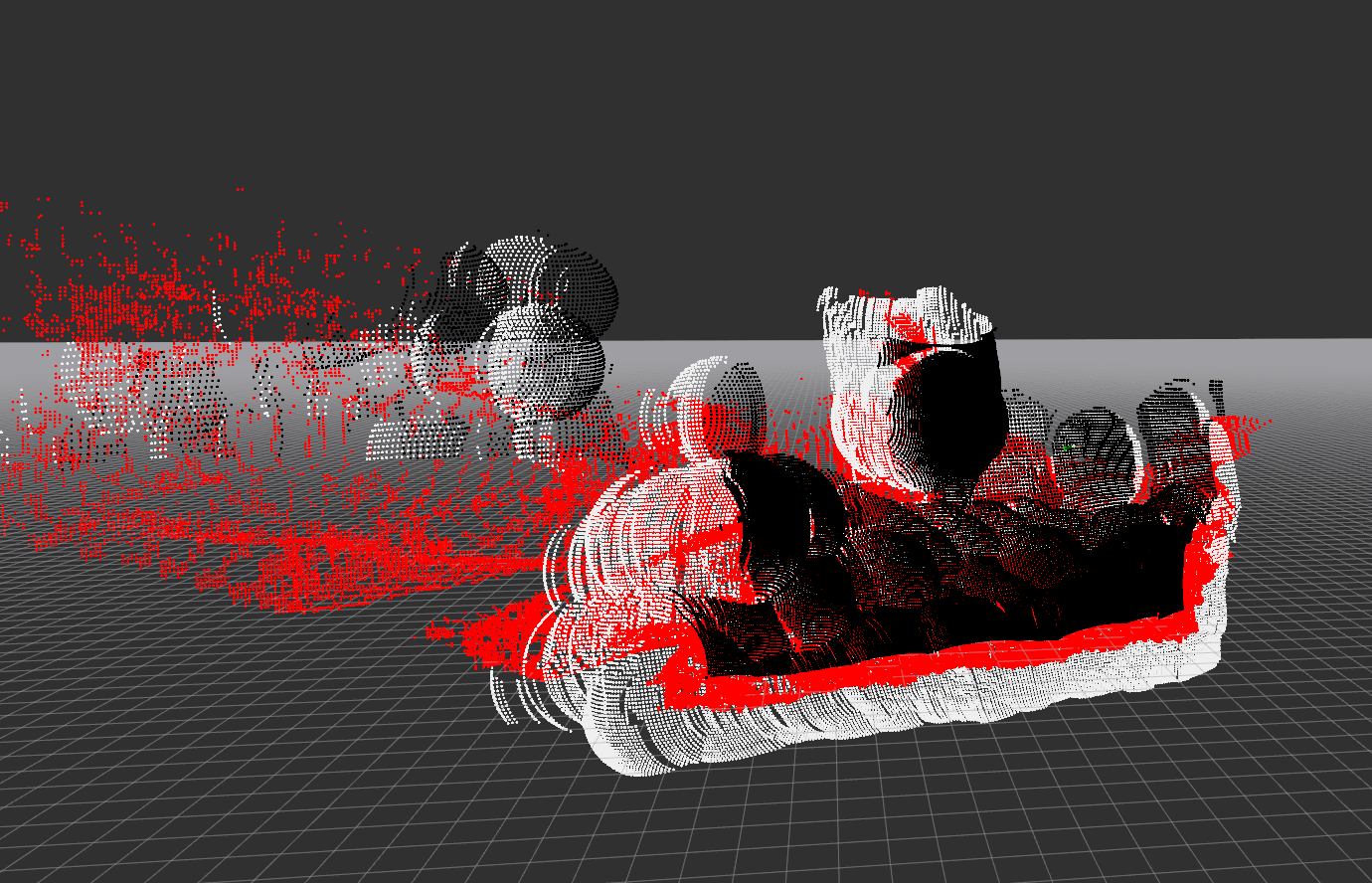

Red = raw disparity, black = foreground expansion, white = background expansion.

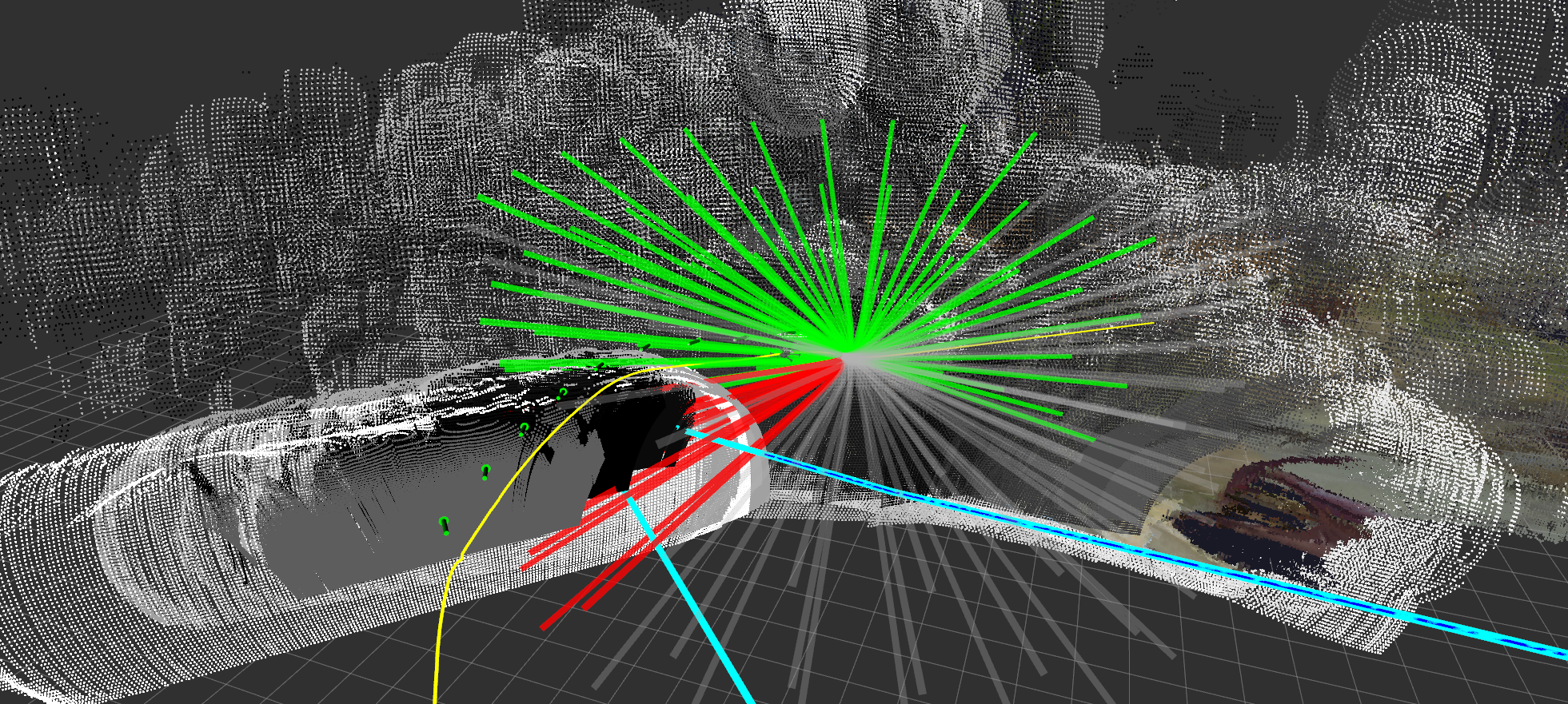

Green = collision-free trajectories, red = in collision, grey = entering unseen space. Cyan/blue lines = global plan used for scoring. Green arrows = camera poses stored in the disparity graph.

How It Works

1. Disparity Expansion (GPU)

On each stereo disparity frame, the GL interface renders the disparity point cloud onto the GPU, then runs expansion shaders that inflate each obstacle point outward by expansion_radius meters as a true sphere. This produces two expanded images:

• Foreground expansion — obstacles pushed toward the camera (conservative near bound)
• Background expansion — obstacles pushed away from the camera (conservative far bound)

2. Disparity Graph

Expanded disparity frames are not used one at a time. Instead, the node maintains a rolling disparity graph: a fixed-size list of (pose, foreground expansion, background expansion) tuples representing past observations. A new entry is added to the graph whenever the drone has moved more than graph_distance_threshold meters or rotated more than graph_angle_threshold degrees since the last entry. The graph holds up to graph_nodes entries; the oldest entry is evicted when the list is full.

This graph is the obstacle representation used for collision checking — it gives the planner a wider spatial memory of obstacles than any single frame could provide.

3. Trajectory Evaluation (2.5 Hz)

A timer fires at 2.5 Hz to plan the next local trajectory. Planning is relative to the look-ahead point published by the trajectory controller, which is always slightly ahead of the drone's current tracking point.

For each candidate trajectory in the library:

1. Every waypoint along the trajectory is projected into the camera frame of each disparity graph node.
2. The GPU counts how many graph nodes see the waypoint as seen (obstacle-free), unseen (outside camera FOV), or in collision (inside expanded obstacle).
3. A trajectory is marked safe if no waypoint has more collisions than seen observations.

4. Trajectory Scoring

Safe trajectories are scored against the global plan:

cost = deviation_from_plan - forward_progress_along_plan

Lower cost is better. The selected trajectory minimizes lateral deviation from the global plan while maximizing forward progress along it. The best trajectory is published as a TrajectoryXYZVYaw segment to the trajectory controller.

5. Rewind Monitoring

Two stuck conditions trigger a rewind (reversal along the past trajectory):

Condition	Parameter	Rewind duration
All trajectories in collision for too long	all_in_collision_duration_threshold	all_in_collision_rewind_duration
Robot stationary for too long	stationary_history_duration, stationary_distance_threshold	stationary_rewind_duration or until stationary_rewind_distance is covered

---

Task Executor

This node is a task executor: it runs as a ROS 2 action server and is activated on demand via a NavigateTask goal. It does not plan continuously — planning only happens while a goal is active.

Action server: /{robot_name}/tasks/navigate Type: task_msgs/action/NavigateTask

Cascade

random_walk_planner  →  NavigateTask  →  droan_gl
                                             ↓
                                  trajectory_segment_to_add
                                             ↓
                                   trajectory_controller

Goal parameters

Field	Type	Description
global_plan	nav_msgs/Path	Path to follow; last pose is the goal
goal_tolerance_m	float32	Distance from goal pose to consider task complete (m)

Feedback (published ~1 Hz)

Field	Type	Description
status	string	"navigating"
distance_to_goal	float32	3D Euclidean distance to goal pose (m)
current_position	geometry_msgs/Point	Current tracking point position

Result

Field	Type	Description
success	bool	True if goal pose reached within tolerance; false if cancelled or error
message	string	"Goal reached", "Cancelled", or "Node shutting down"

Trajectory controller mode

On goal acceptance the node calls the set_trajectory_mode service with mode ADD_SEGMENT, enabling the trajectory controller to extend the trajectory buffer as new segments arrive. On goal completion or cancellation it restores mode TRACK.

CLI test

# Navigate to a specific pose (requires a populated global plan topic)
ros2 action send_goal /robot_1/tasks/navigate task_msgs/action/NavigateTask \
  '{global_plan: {header: {frame_id: "map"}, poses: [{pose: {position: {x: 10.0, y: 0.0, z: 3.0}}}]}, goal_tolerance_m: 1.0}' \
  --feedback

---

Parameters

Parameter	Default	Description
target_frame	"map"	Frame for collision checking and visualization
look_ahead_frame	"look_ahead_point_stabilized"	Frame used as trajectory planning origin
rewind_info_frame	"base_link_stabilized"	Frame for rewind status text marker
visualize	true	Publish expanded disparity pointcloud (high CPU cost when enabled)
expansion_radius	—	Sphere radius (m) for obstacle expansion
seen_radius	—	Radius (m) around drone treated as observed/safe
ht	—	Trajectory horizon (seconds)
dt	—	Trajectory time step (seconds)
downsample_scale	—	Disparity image downsample factor before GPU processing
graph_nodes	—	Max number of disparity observations stored for collision checking
graph_distance_threshold	—	Min distance (m) travelled before storing a new observation
graph_angle_threshold	—	Min yaw change (degrees) before storing a new observation
all_in_collision_duration_threshold	—	Seconds all trajectories must be in collision to trigger rewind
all_in_collision_rewind_duration	—	Duration (s) of rewind when all-in-collision condition fires
stationary_history_duration	—	Observation window (s) for stationary detection
stationary_distance_threshold	—	Max movement (m) over the window to be considered stationary
stationary_rewind_distance	—	Target rewind distance (m) for stationary rewind
stationary_rewind_duration	—	Max rewind duration (s) for stationary rewind

---

Subscriptions

Topic	Type	Description
disparity	stereo_msgs/DisparityImage	Stereo disparity image
camera_info	sensor_msgs/CameraInfo	Camera intrinsics for disparity unprojection
look_ahead	airstack_msgs/Odometry	Look-ahead point from trajectory controller (trajectory planning origin)
tracking_point	airstack_msgs/Odometry	Current robot tracking point (for stuck detection and goal distance)
global_plan	nav_msgs/Path	Global path for trajectory scoring (also set via NavigateTask goal)
reset_stuck	std_msgs/Empty	Manually clear stuck detection history
clear_map	std_msgs/Empty	Clear stuck detection history (GL map clearing not yet implemented)

Publications

Topic	Type	Description
trajectory_segment_to_add	airstack_msgs/TrajectoryXYZVYaw	Best local trajectory segment
foreground_expanded	sensor_msgs/Image	GPU-expanded foreground disparity (visualization)
background_expanded	sensor_msgs/Image	GPU-expanded background disparity (visualization)
fg_bg_cloud	sensor_msgs/PointCloud2	Expanded obstacle pointcloud (visualization)
traj_debug	visualization_msgs/MarkerArray	Trajectory library with collision status coloring
graph_vis	visualization_msgs/MarkerArray	Disparity graph camera pose arrows
local_planner_global_plan_vis	visualization_msgs/MarkerArray	Global plan segment used for scoring
stuck	std_msgs/Bool	True when rewind is active
rewind_info	visualization_msgs/MarkerArray	Rewind status text markers
